Wiring must start from B- to B+ and be connected in sequence
Measure the voltage of each battery string with a multimeter to ensure the correct line sequence
Connect B- of BMS to the total negative of Battery Before Plugging the sampling cable into the BMS, Otherwise, the board will be burnt!

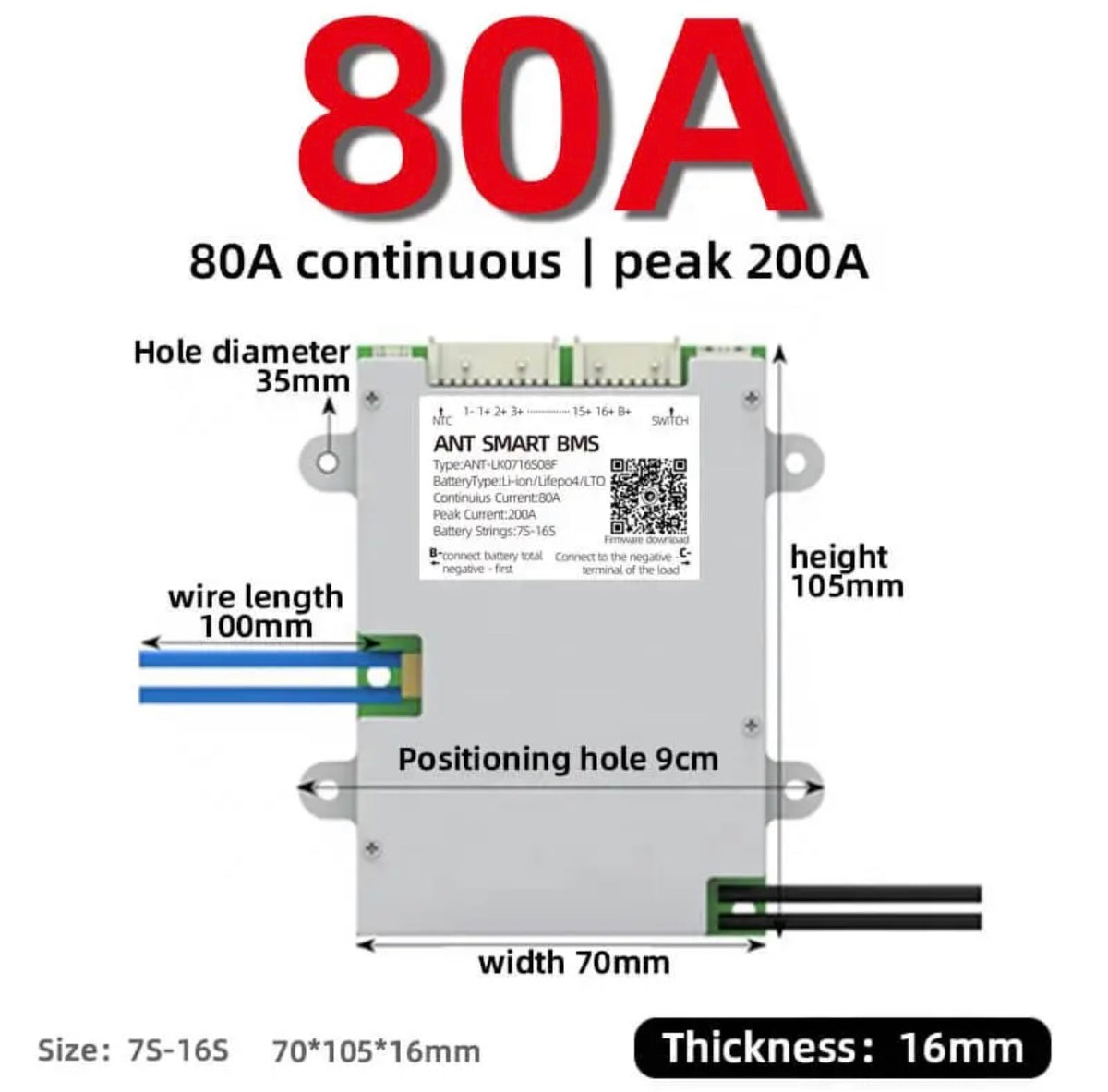

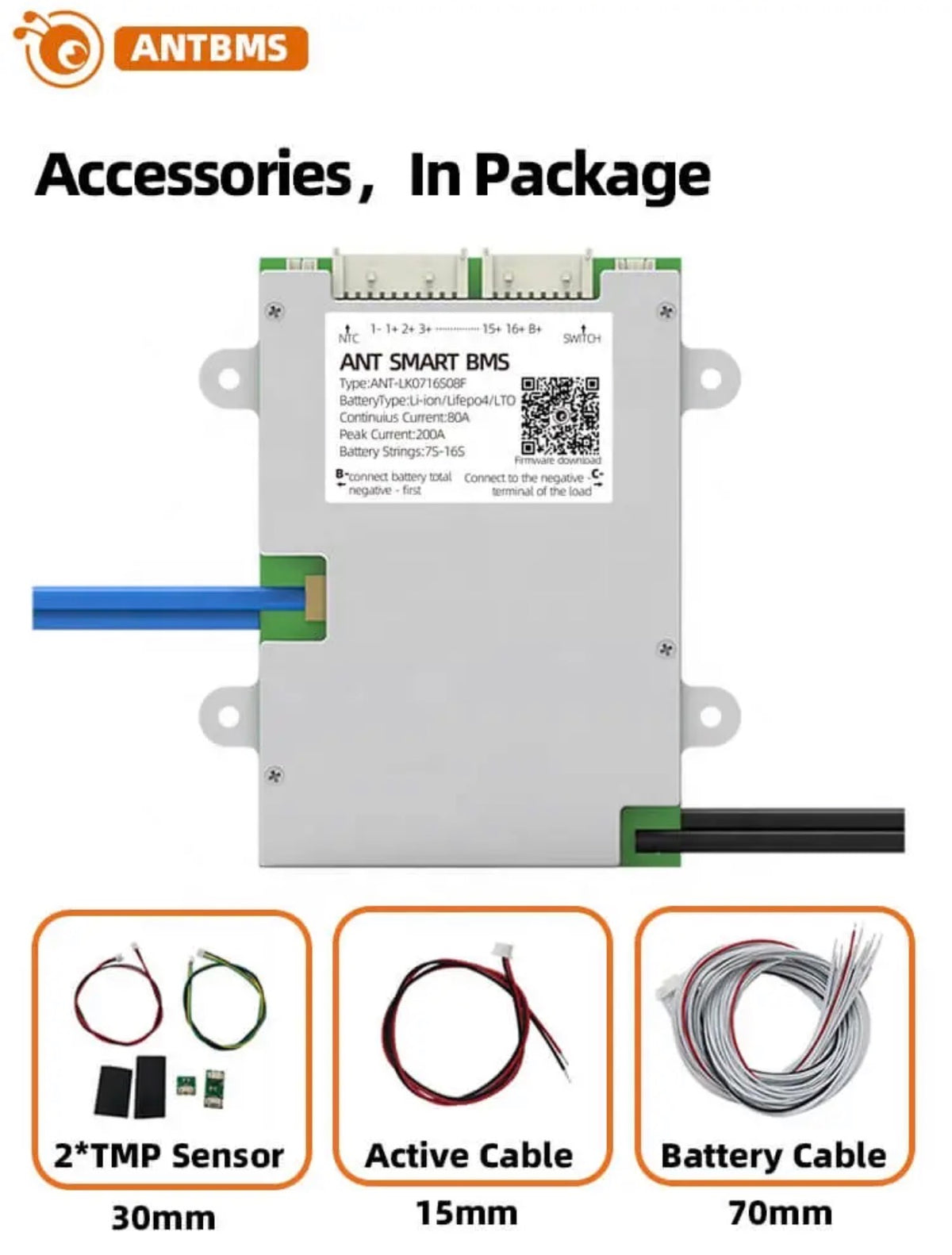

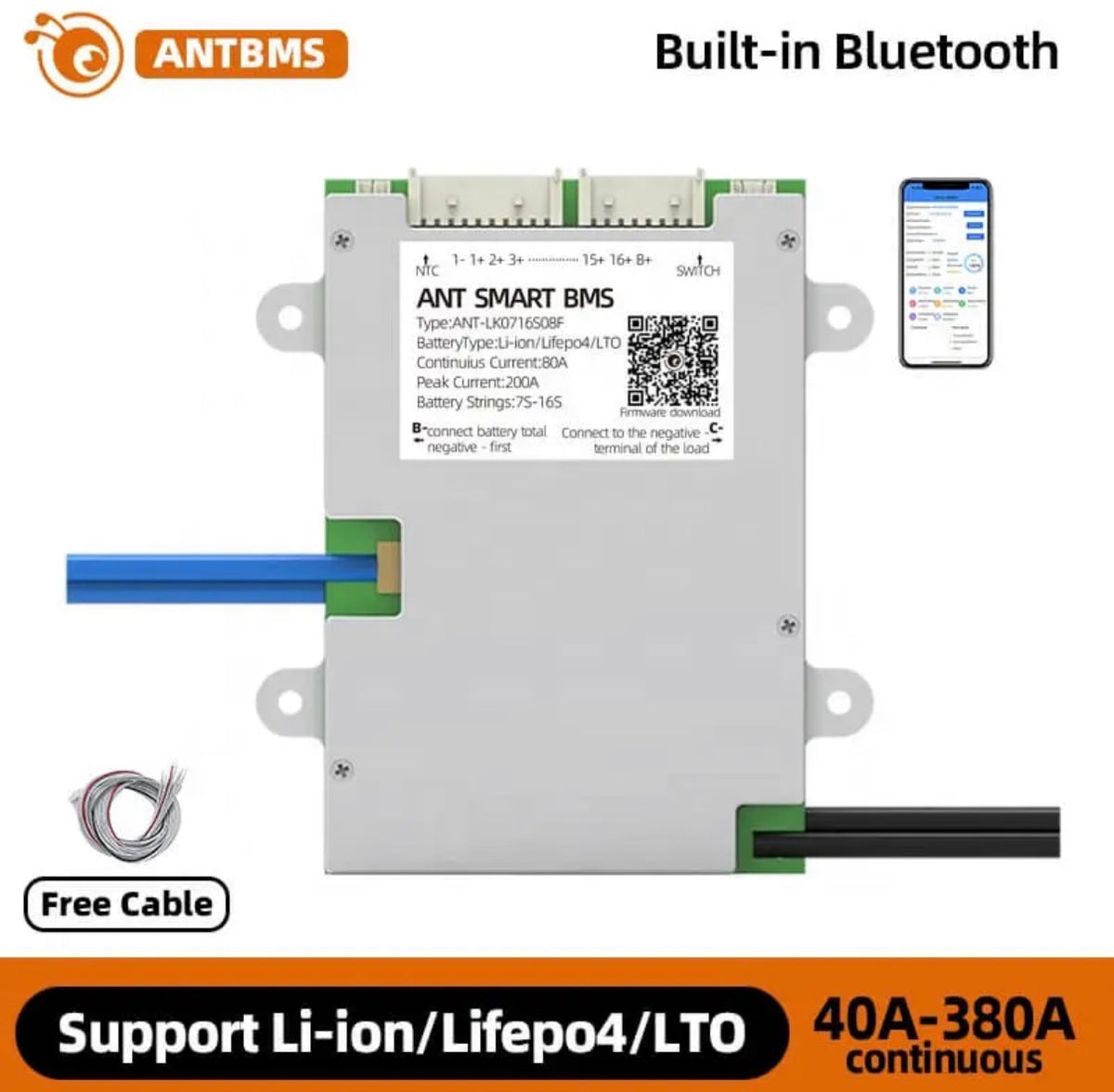

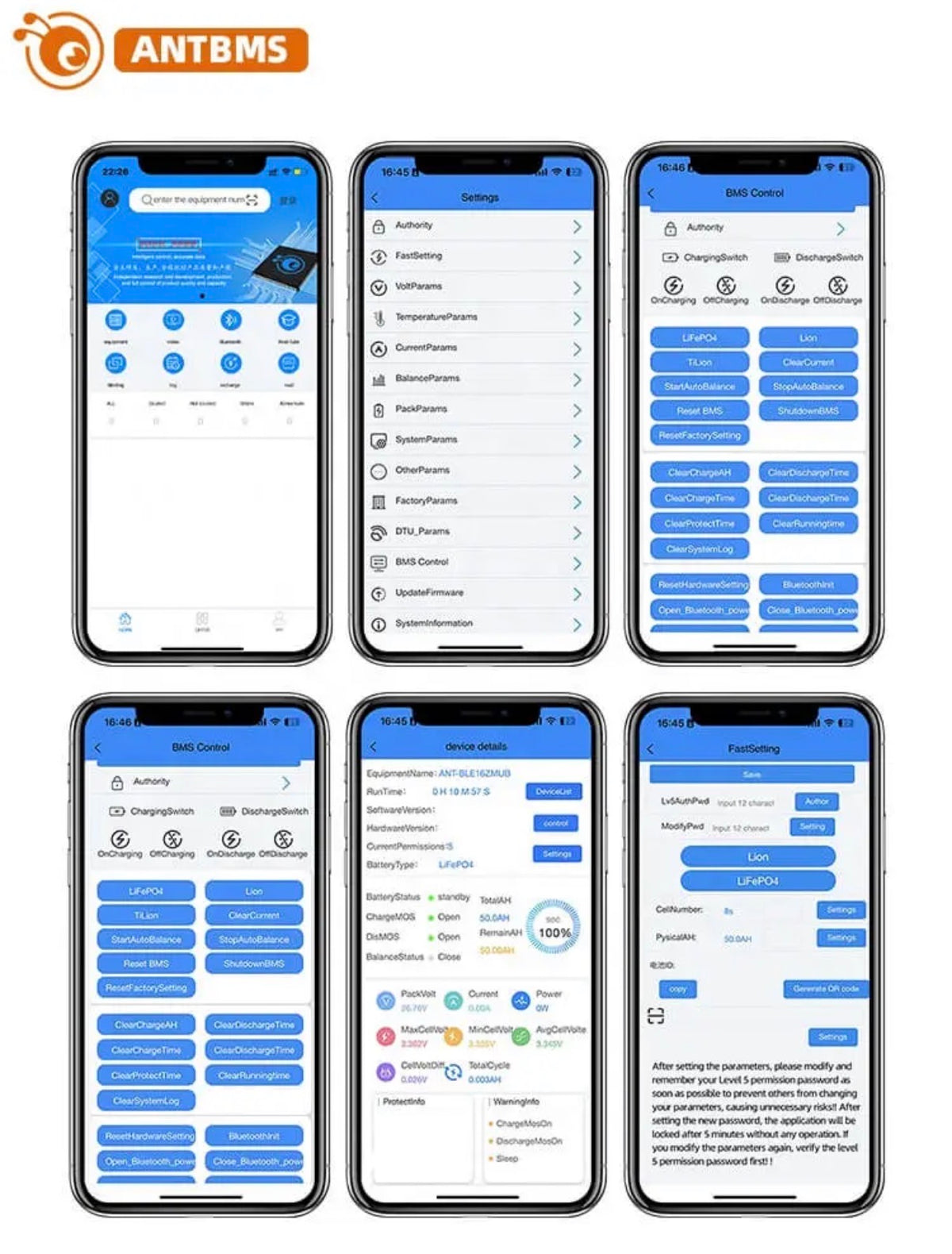

ANT BMS Smart BMS

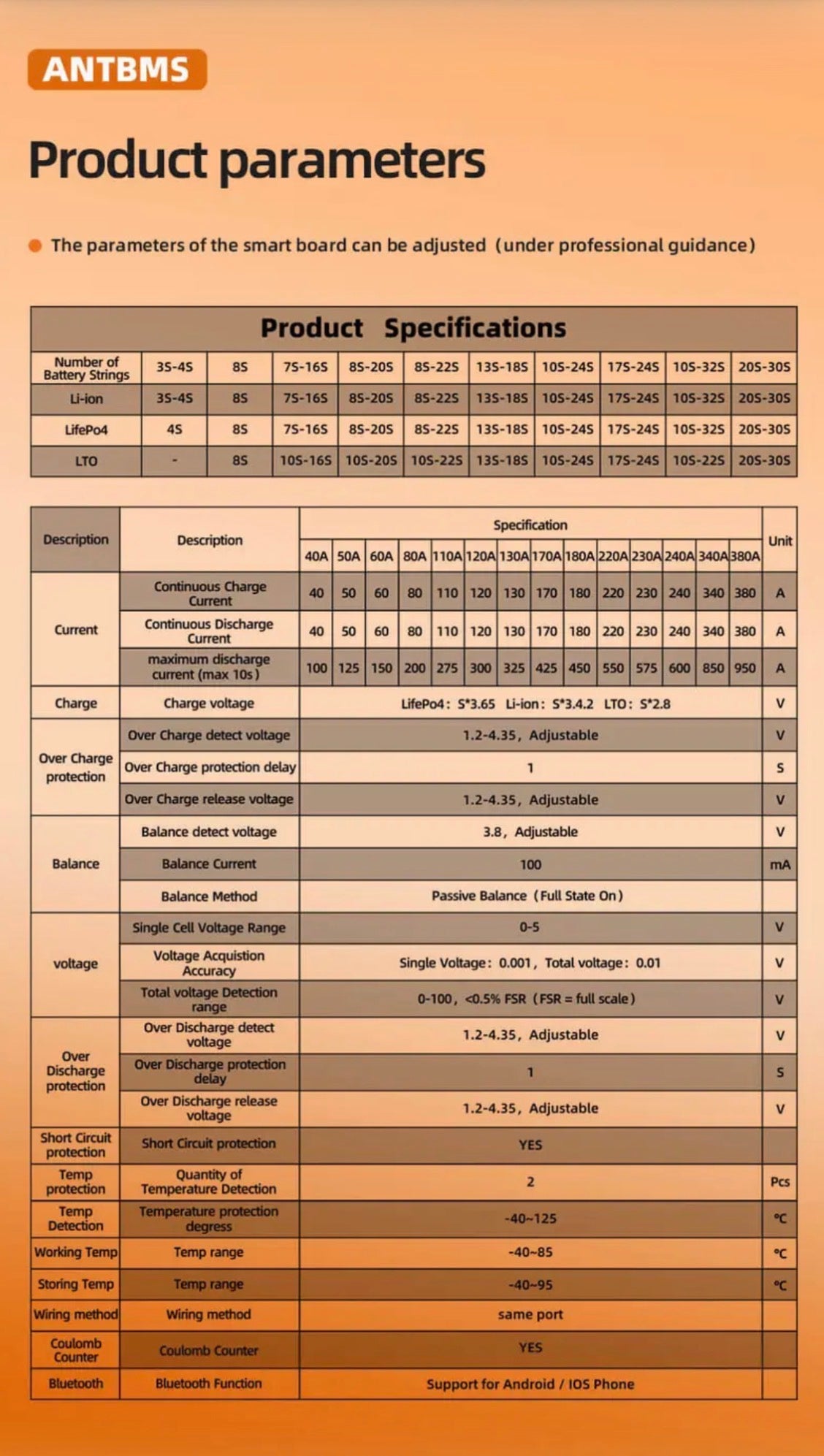

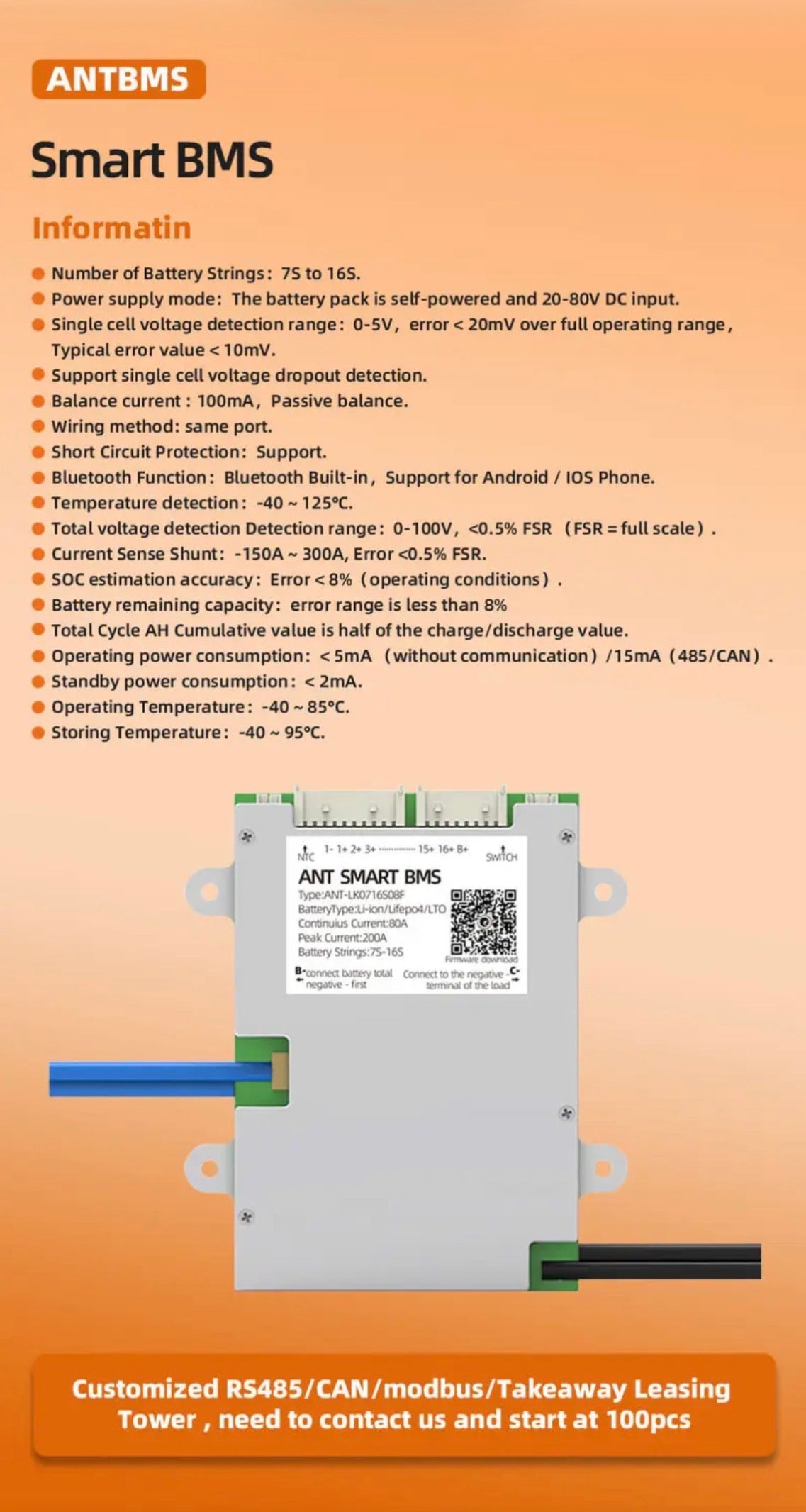

● Number of Battery Strings:7S to 16S. ● Power supply mode:The battery pack is self-powered and 20-80V DC input. ●Single cell voltage detection range:0-5V,error<20mV over full operating range,Typical error value<10mV. ● Support single cell voltage dropout detection. ● Balance current:100mA,Passive balance. ● Wiring method:same port. ● Short Circuit Protection:Support. ● Bluetooth Function:Bluetooth Built-in,Support for Android /IOS Phone. ● Temperature detection:-40～125℃. ● Total voltage detection Detection range:0-100V,<0.5%FSR(FSR=full scale). ●Current Sense Shunt:-150A~300A,Error<0.5%FSR. ●SoC estimation accuracy:Error<8%(operating conditions). ● Battery remaining capacity:error range is less than 8% ● Total Cycle AH Cumulative value is half of the charge/discharge value. ●Operating power consumption:<5mA(without communication)/15mA(485/CAN). ● Standby power consumption:<2mA. ●Operating Temperature:-40~85°C. ● Storing Temperature:-40～95℃.
