Onewheel Pint/PINTX/PINTV Fast and Ultra Fast Chargers

**USE 4 AMP CHARGER AT OWN RISK ON STOCK BATTERY - Not intended for use with stock pint batteries. Do so at your own risk.**

Onewheel Pint 63V 2A Fast Charger and 4A Ultra Fast Charger (GX12-2 Pin)

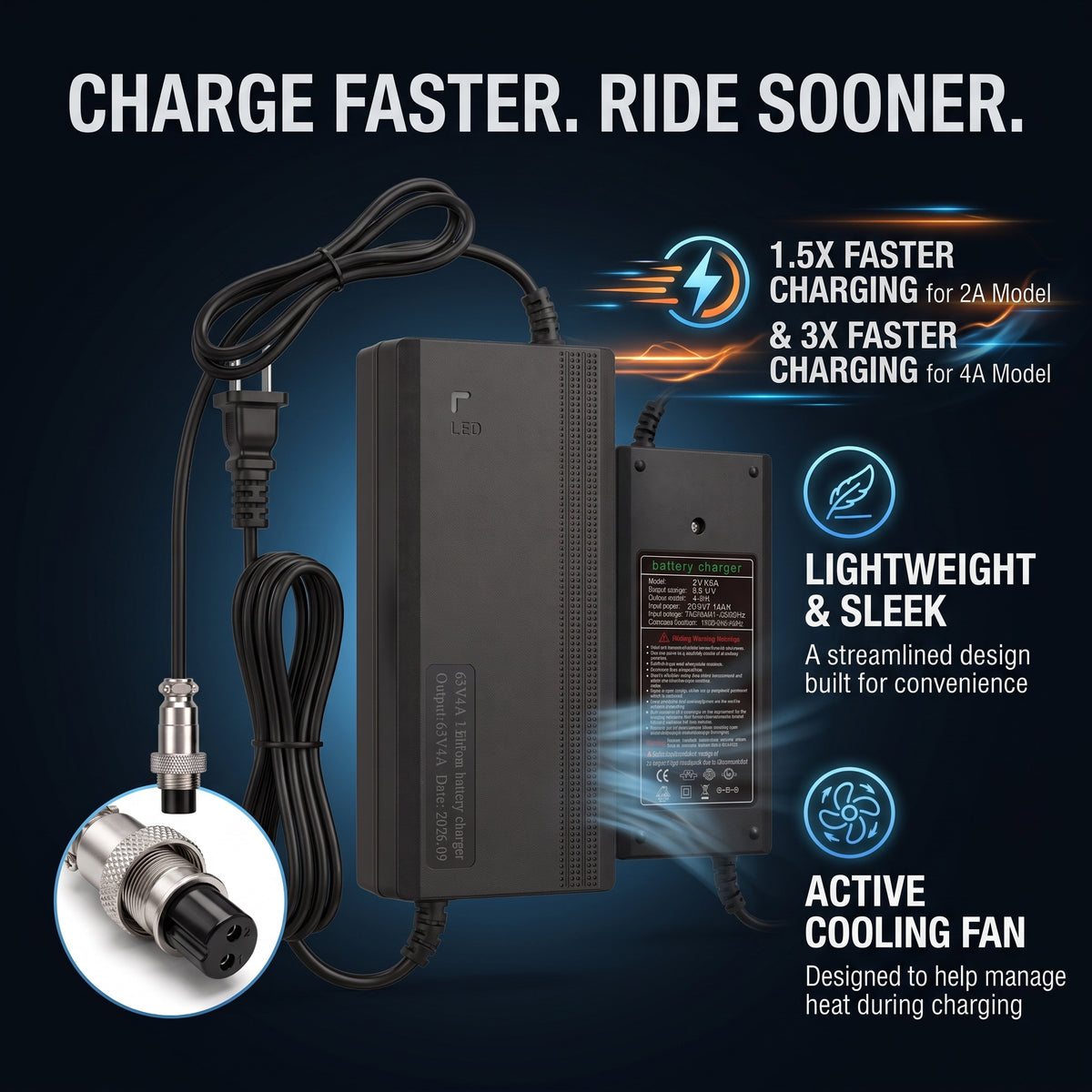

Cut your charging downtime and get back on the pavement faster. Engineered specifically for 15S lithium-ion setups, these 63.0V 2.0A or 4.0A fast/ultra fast charger delivers roughly 1.5-3x the charging speed of the standard 1.3A stock unit—taking a stock Pint pack from 0 to 90% in just 35–45 minutes, and powering through extended-capacity 15S2P builds with ease.

Key Features:

• High-Speed Output:

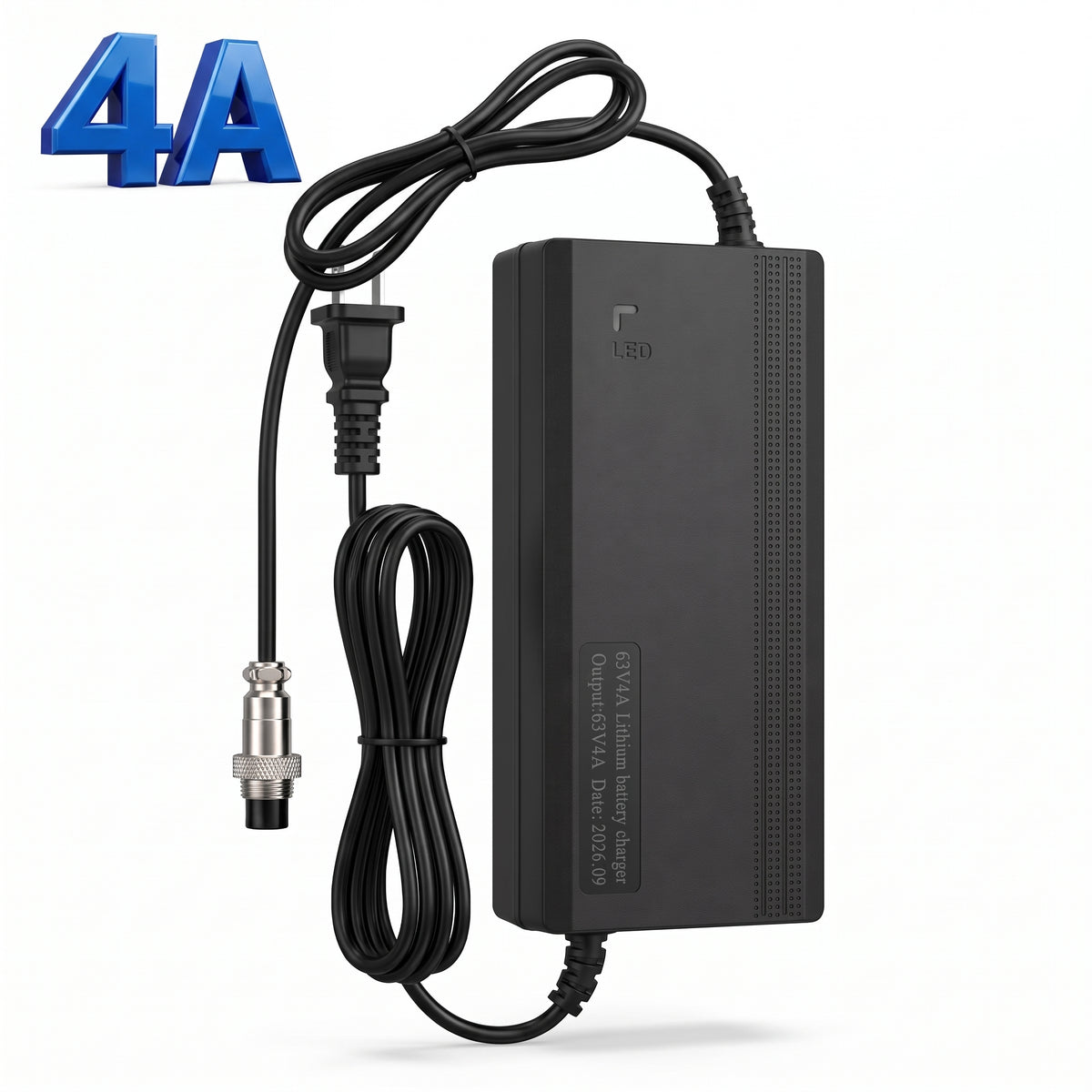

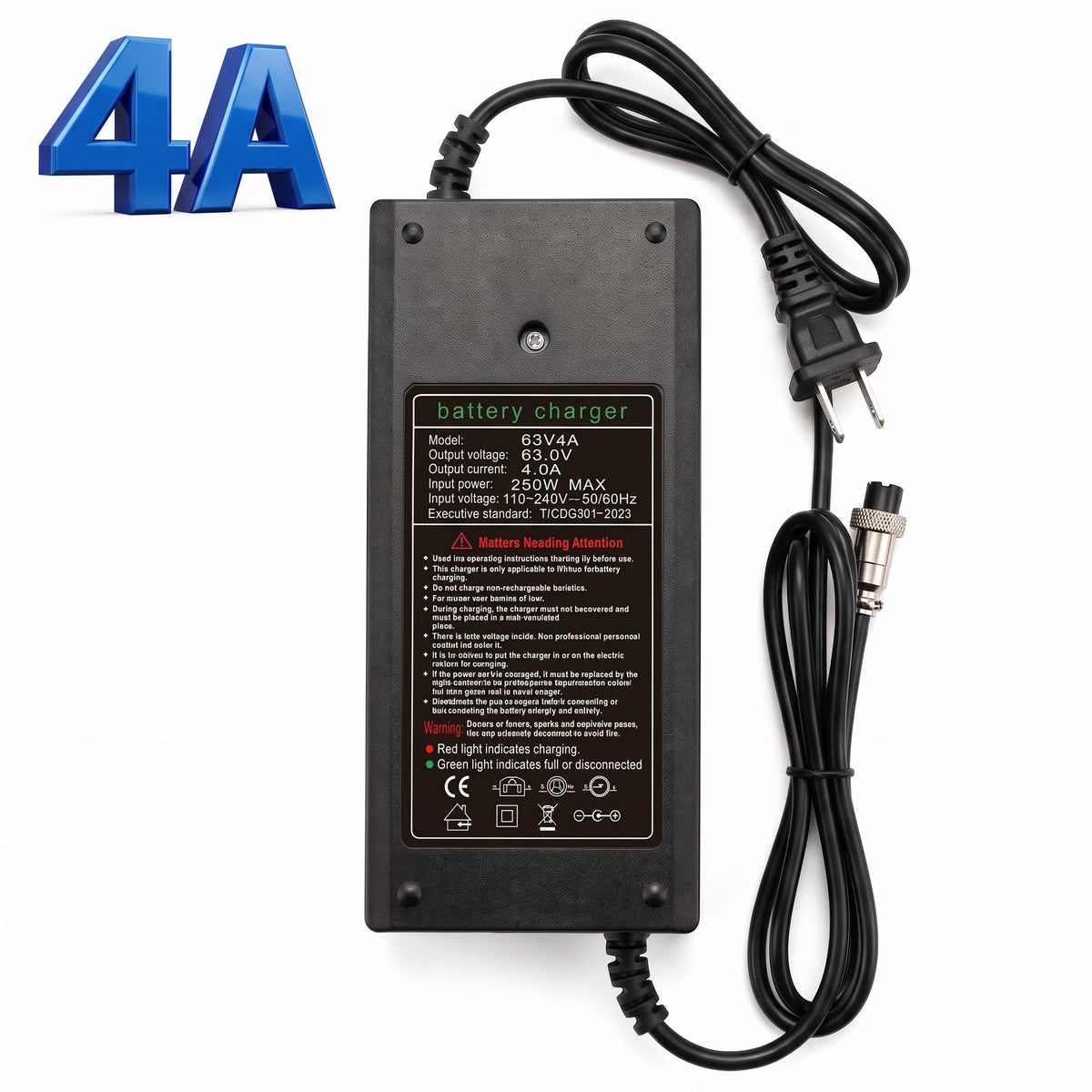

  • 4A - Delivers a 63.0V DC at ~4.0A (approx. 250W max)

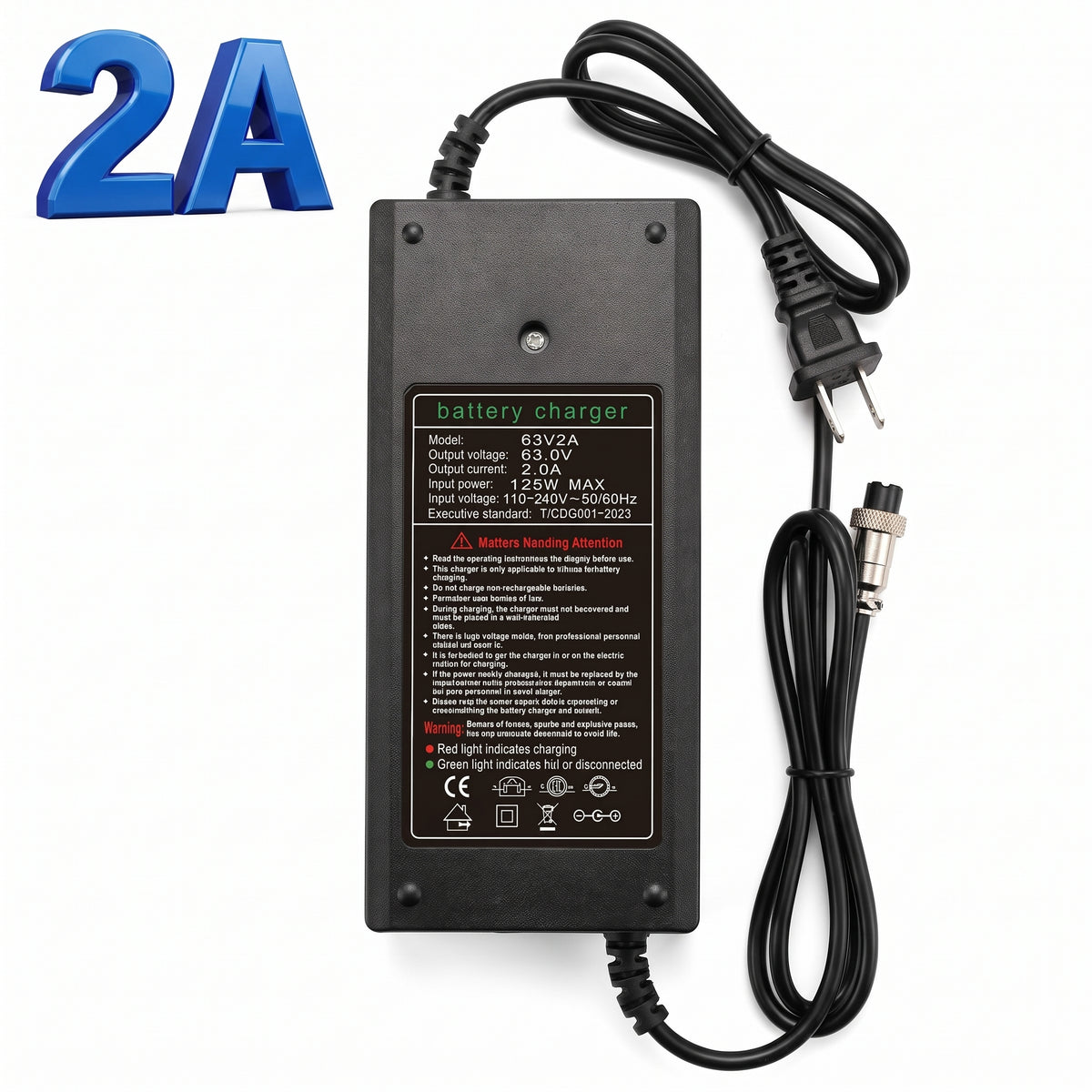

  • 2A - Delivers a 63.0V DC at ~2.0A (approx. 125W max)

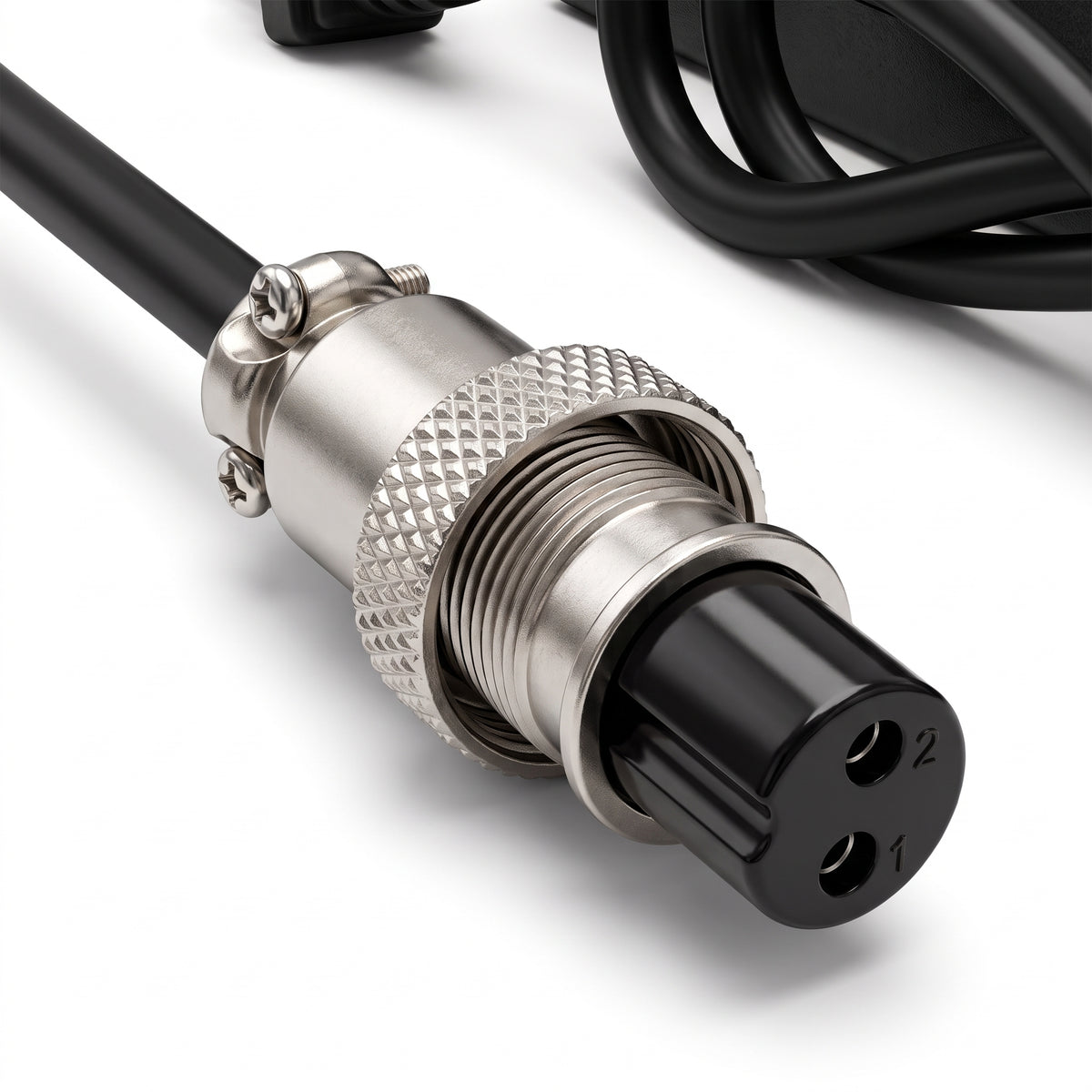

• Direct GX12-2 Pin Connector: Fitted with the threaded, aviation-style GX12 2-pin plug wired specifically for Onewheel Pint charge ports (Pin 1: Positive, Pin 2: Negative).
• Active Cooling System: Integrated internal cooling fan actively exhausts heat through side ventilation to ensure stable, sustained output during high-draw cycles.
• Dual-State LED Status: Clear front-facing indicator LED (Red = Fast Charging, Green = Full Charge / Standby).
• Wide Input Compatibility: Universal 110V-240V AC 50/60Hz input with a reinforced, strain-relieved AC power cable for travel or garage bench use.

Verification & Pre-Flight Checklist

1. Connector Polarity: Verify your board's charge port pinout with a multimeter before the first cycle (Pin 1 = +63V, Pin 2 = Ground).
2. First Charge Test: Plug the charger into AC power first (LED shows solid green), attach the threaded collar to the Pint charge port, and confirm the LED switches to red with the internal fan spinning up.
3. Thermal Check: Inspect the charge plug collar, port housing, and battery module enclosure for any abnormal heat buildup before leaving unattended. Highly suggested to also check app to monitor temps closely.
