Onewheel XR Budget and Fast Chargers

Onewheel XR 63V 2A Budget Charger and 4A Fast Charger (XLR 3pin)

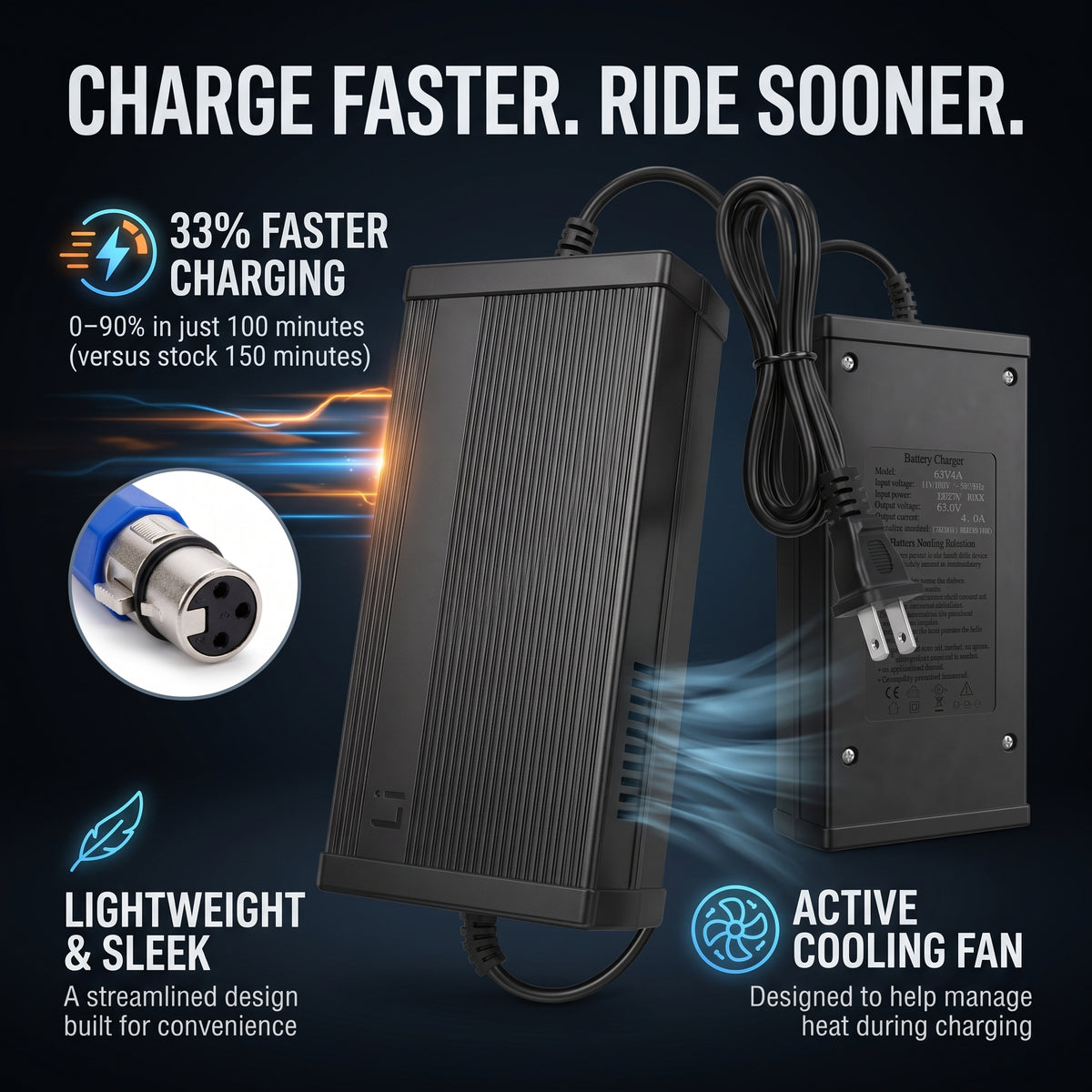

Cut your charging downtime and get back on the pavement faster. Engineered specifically for 15S lithium-ion setups, these 63.0V 2.0A budget or 4.0A fast charger can deliver up to 33% faster charging speed compared to the standard 3A stock unit.

Key Features:

• High-Speed Output:

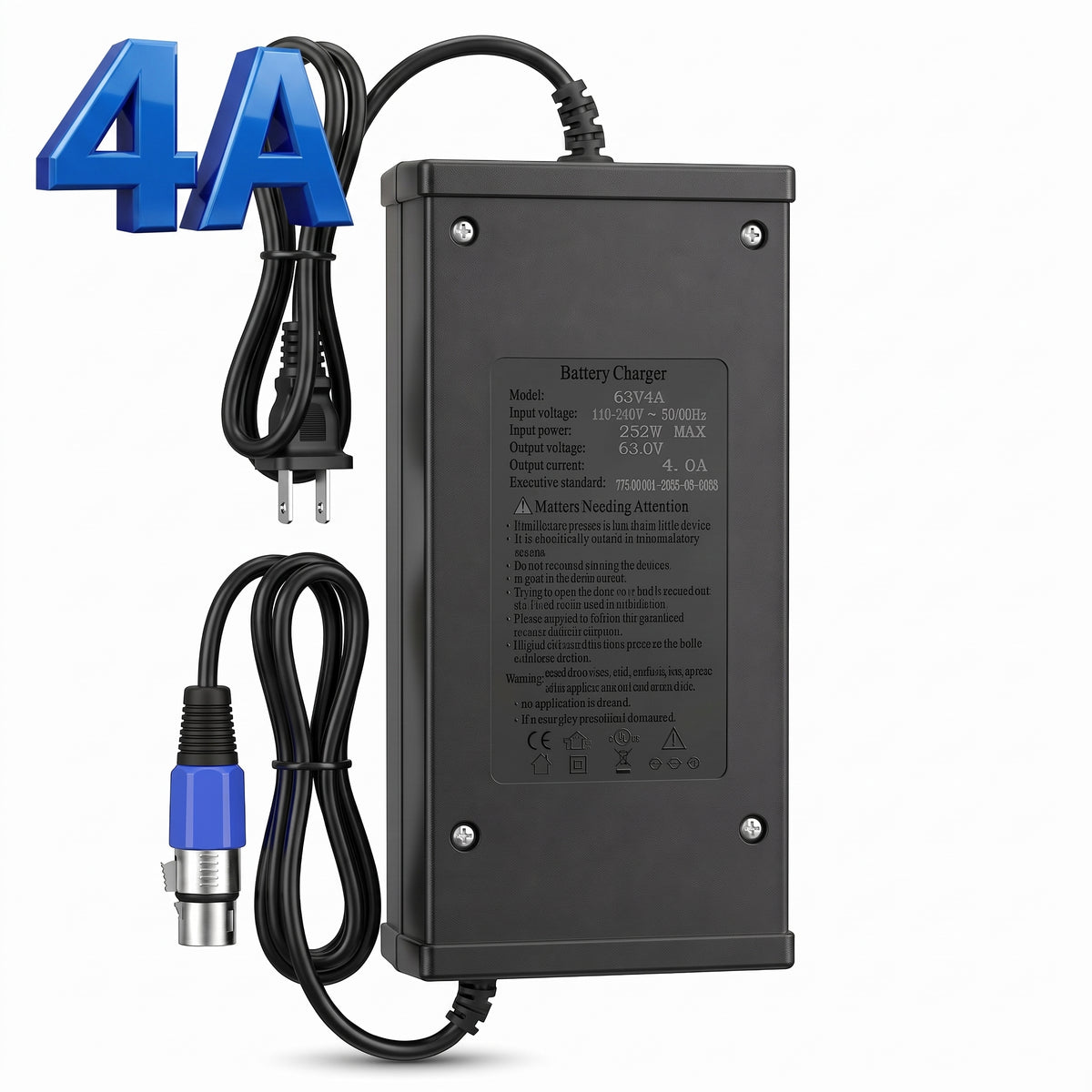

  • 4A - Delivers a 63.0V DC at ~4.0A (approx. 250W max)

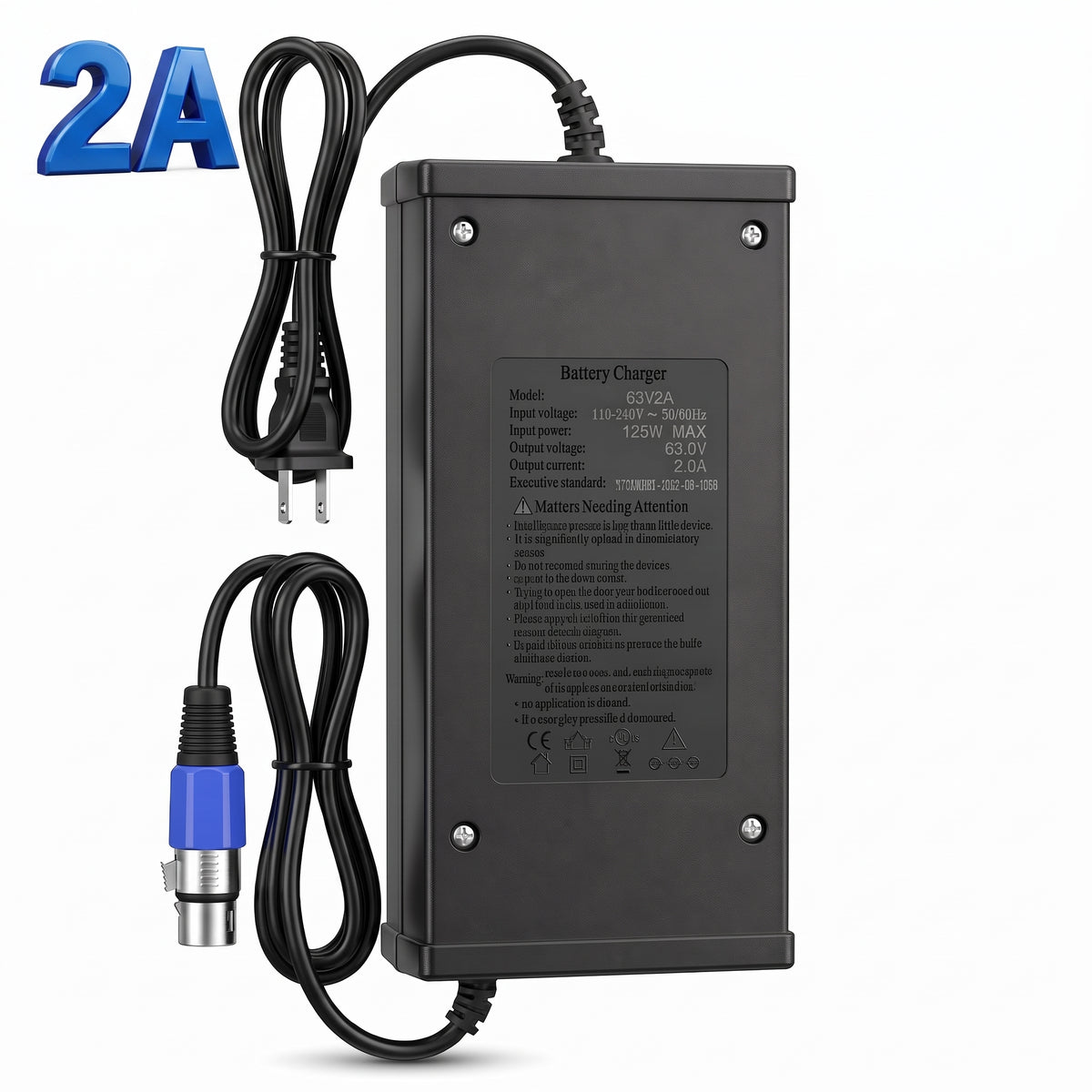

  • 2A - Delivers a 63.0V DC at ~2.0A (approx. 125W max)

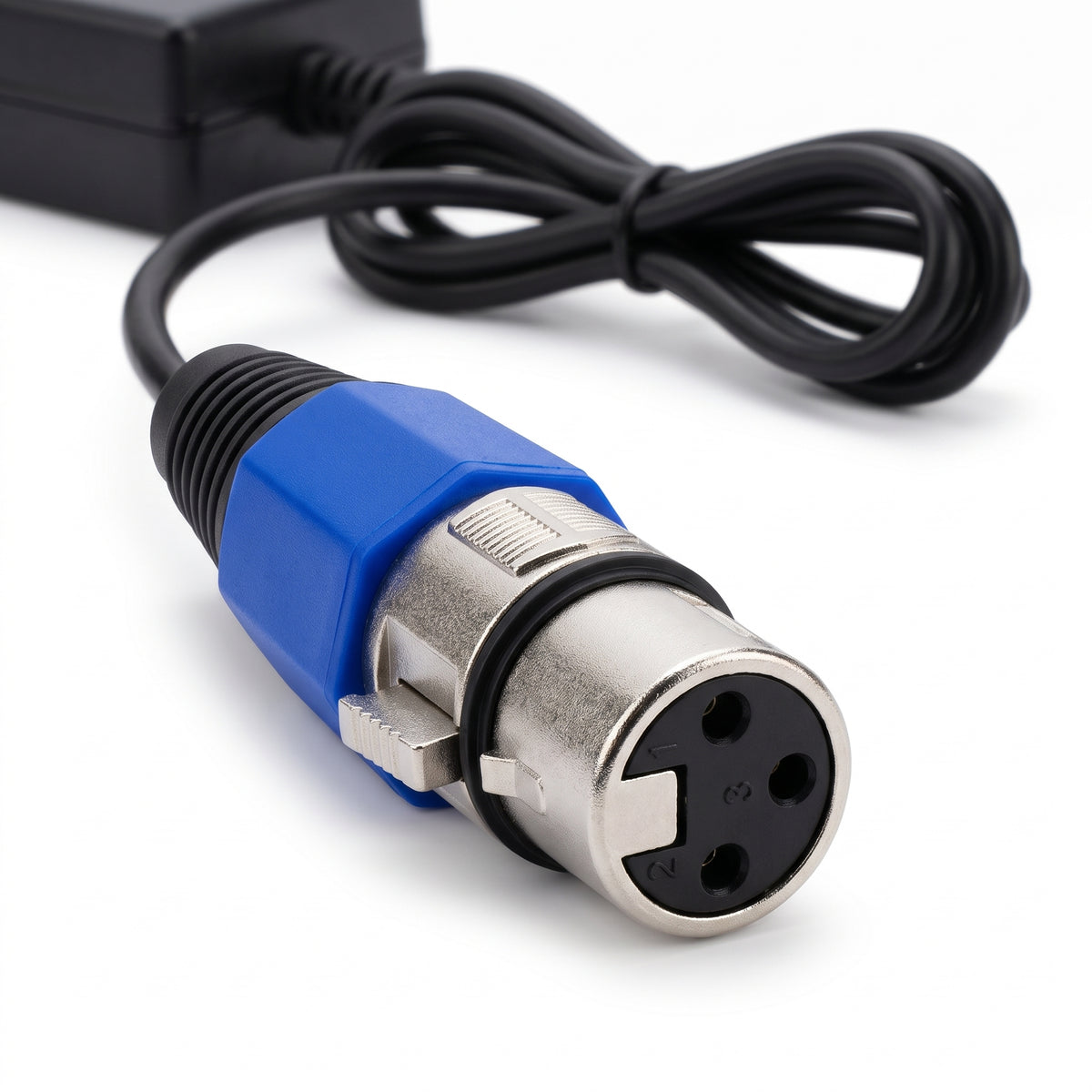

• Direct XLR 3 Pin Connector: Fitted with the threaded, aviation-style GX12 2-pin plug wired specifically for Onewheel Pint charge ports (Pin 1: Positive, Pin 2: Negative).
• Active Cooling System: Integrated internal cooling fan actively exhausts heat through side ventilation to ensure stable, sustained output during high-draw cycles.
• Dual-State LED Status: Clear front-facing indicator LED (Red = Fast Charging, Green = Full Charge / Standby).
• Wide Input Compatibility: Universal 110V-240V AC 50/60Hz input with a reinforced, strain-relieved AC power cable for travel or garage bench use.

Verification & Pre-Flight Checklist

1. Connector Polarity: Verify your board's charge port pinout with a multimeter before the first cycle (Pin 1 = +63V, Pin 2 = Ground).
2. First Charge Test: Plug the charger into AC power first (LED shows solid green), attach the threaded collar to the Pint charge port, and confirm the LED switches to red with the internal fan spinning up.
3. Thermal Check: Inspect the charge plug collar, port housing, and battery module enclosure for any abnormal heat buildup before leaving unattended. Highly suggested to also check app to monitor temps closely.
